Portable Near Infrared Spectrometer 900-1700nm Wavelength Range Raman Spectrometer

Name: Portable Near Infrared Spectrometer 9001700nm Wavelength Range Raman Spectrometer
Brand: JINSP
Price: 1 USD

Brand Name : JINSP

Model Number : SR50R

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100 PCS/70-90 days

Delivery Time : 30-50working days

Packaging Details : Customized Packaging

Type : Linear array InGaAs

Effective pixels : 128 (256 optional)

Cell size : 50μm*250μm

Sensitive area : 6.4mm*0.25mm

Wavelength range : 900-1700nm

Data Output Interface : USB2.0, UART

Entrance slit : 10μm, 25μm and 50μm

Integration time : 1ms-5s

Contact Now

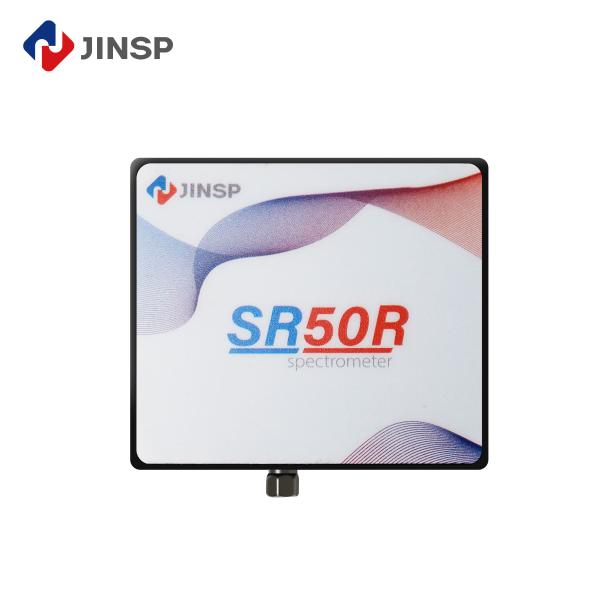

900nm - 1700nm Near Infrared Spectrometer Module

The JINSP SR50R17 is a compact, cost-effective 900nm~1700nm near-infrared spectrometer, using a non-cooled InGaAs sensor with high sensitivity and resolution.Typical Applications:Moisture content measurement, wastewater testing.Detection of substances such as fat, oil, protein, fiber, etc.Grain and fodder quality testing.Measurement of pharmaceutical mixture components.

Technical Parameters

Detector	Type	Linear array InGaAs
	Efective Pixel	128 (256 optional)
	Pixel Size	50μm*250μm
	Sensing Area	6.4mm*0.25mm
Optical Parameters	Wavelength Range	900nm-1700nm
	Optical Resolution	6.5nm (@25μm)
	Entrance Slit Width	5μm, 10μm, 25μm, 50μm (customizable)
	Incident Light Interface	SMA905 ﬁber interface, free space
Electrical Parameters	Integration Time	1ms-5s
	Data Output Interface	USB2.0, UART
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<1A
	Operating Temperature	10°C~40°C
	Storage Temperature	-20°C~60°C
	Operating Humidity	＜90%RH (no condensation)
Physical Parameters	Dimensions	77mm67mm36mm
Physical Parameters	Weight	0.4kg

Technical Features:

Compact and low cost, High resolution
Compatible with USB Or UART interface to output measured spectrum data
Receive SMA905 fiber input to obtain free space optical
Lens surface is plated with gold film, high efficiency of near-infrared reflection

Applications

Some specific scenarios where this product can be used include:

Moisture content measurement, waste water testing
Detection of substances such as fat, oil, protein, fiber etc.
Grain and fodder quality testing
Measurement ofpharmaceutical mixturecomponents

Support and Services:

The Near infrared spectrometer provides high-performance spectral measurements in a portable and affordable package. Our product technical support and services include:

- Expert technical assistance and troubleshooting

- Comprehensive product documentation and user manuals

- Software updates and upgrades

- Calibration and maintenance services

- Customization options to fit specific application needs

Our team of experienced engineers and technicians are dedicated to ensuring the best performance and reliability of your Universal Compact Fiber Spectrometer.

Portable Near Infrared Spectrometer 900-1700nm Wavelength Range Raman Spectrometer

Company Profile and Exhibition:

JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology.As a leading supplier of spectroscopic technology, JINSP Technology offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Portable Near Infrared Spectrometer 900-1700nm Wavelength Range Raman Spectrometer

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.

Also our technicians will offer professional tecnical opearation meetings.

Q2:Can you offer a operation training?

A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local

support( installation , training, debugging, maintenance ).

Q3:How to receive a best price in the shortest time?

A3:When you send us an inquiry,please kindly offer details with wavelength,detector,effective pixels,focal length

and so on.We will send you quotation with details soon to your email.

Q4:If the spectrometer has problem in my place,how could I do?

A4:The spectrometer has one year warranty.If it breaks down,our technician will figure out what the problem maybe,

according to client's feedback.We can repair for free within one year warranty.

Q5:Which payment can be acceptable ?

A5:We could accept the payment by T/T, Paypal, Western Union,L/C, etc.
